15 Watts 1470nm Endovenous Laser Therapy Minimally Invasive Procedure Performed
Venous insufficiency is a very common condition resulting from decreased blood flow from the leg veins up to the heart. Normally, one-way valves in the veins keep blood flowing toward the heart, against the force of gravity. When the valves weaken and don’t close properly, blood flows backwards. This condition is called reflux. Veins that have lost their valve effectiveness become elongated, rope-like, bulged, and thickened. These are commonly known as varicose veins.
What is Venous Ablation?
For patients suffering from varicose veins, vein ablation is a minimally invasive procedure that treats the veins from the inside. This outpatient procedure is performed by an interventional radiologist and uses heat energy from a laser to seal the afflicted vein.
Enlarged and swollen blood vessels commonly associated with varicose veins can also cause pain and impaired walking that can generally worsen as the day goes on. In more severe cases darkening of the skin can occur. Compared to traditional vein stripping techniques, venous ablation is effective, has fewer negative outcomes (up to 95% success rates), leaves virtually no scars and has much less pain during recovery.
Venous ablation is extremely safe Venous ablation is extremely safe, however as with all surgical procedures, there are risks that should be fully discussed with a physician. Some of these risks, although minimal, can include perforation of the vein, thrombosis, pulmonary embolism, phlebitis, infection and skins burns if the vein treated is close to the surface of the skin.
What causes varicose veins?
Leg veins work against gravity to send blood up to your heart, helped by contractions in your leg muscles. Valves inside the veins open to send blood toward the heart and close to prevent it from flowing backward.
Varicose veins develop when weak or damaged valves allow blood to back up in the veins, causing them to stretch, twist and swell. Several factors can increase your risk of varicose veins, including:
Congenital (present since birth) valve defects in veins
Family history of varicose veins
Lack of movement, such as standing in one spot or sitting for long periods of time
Obesity or excess weight
Older age
Pregnancy
Dimed laser Technology provide the advantaged medical laser system for varicose veins treatment.

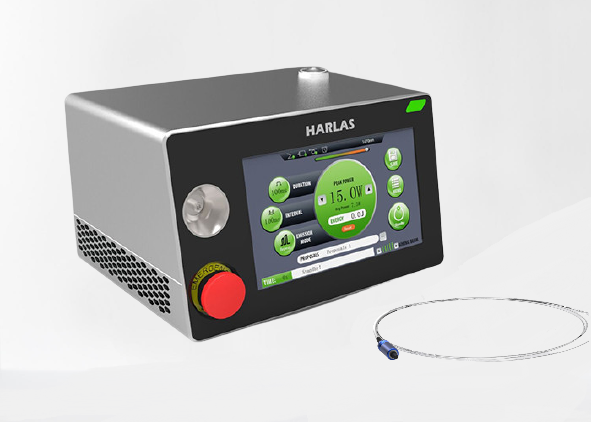

Harlas dual wavelength 1470nm Minimally invasive laser is an outstanding surgical laser machine designed for endovenous laser treatment. It has a compact and modular design mainly in silver aluminum alloy housing and black tempered glass panel, exuding soft luster, aesthetic feeling and delicate texture. It has a light weight and small size,which is easy to carry and easy in cleaning.
980nm achieving high absorption simultaneously through hemoglobin and water, due to its wavelength, thus with a high ablation capacity which leads to complete clusure of treated vein . The 1470nm wavelength,cooperating with a radial, is very precise and additionally protects the patient against excessive heating of the tissues surrounding the removed vein.
Technical Specifications Of Harlas Surgical Laser
| Laser Type | GaAIAs Diode Laser |
| Wavelength | 980nm | 1064nm | 1470nm | 980nm+1470nm | 650nm+810nm+980nm+1064nm |
| Maximum Power | 30W/45W | 30W | 15W | 15W+10W | 2mW+15W+15W+15W |
| Operation Mode | CW, Single or Repeat Pulse |
| Pulse Duration | 10us -3s |
| Repetition Rate | 0.2Hz – 50KHz |
| Pilot Beam | Red Diode Laser of 650nm, Power <5mW |
| Control Mode | True Color Touch Screen (7 inches, resolution 1024*600px) |
| Transmission System | Medical Fibers with SMA905 Connector |
| Dimensions | 230(W) * 180(L) * 135(H)mm |
| Weight | 3.5KG
|
Sensitive Touch Screen And Easy-To-Use Interface
- Harlas surgical laser gets a 7-inch color touch screen with high resolution 1024*600px that users can easily perform various kinds of surgical treatments or make various settings in a few taps.
- The intuitive operation system with power level, three operating mode (cw, single pulse, repeat pulse) and timer selections allows the user to use, adjust and save protocols easily.
- The screen brightness can be customized and adjusted for each operating environment.
0.1W~45W Surgery Laser Machine Of Different Wavelengths
Harlas surgical laser offers various wavelengths such as 650nm, 810nm, 980nm, 1064nm, 1470nm and etc. for doctors to select in line with the clinic treatment. Different wavelengths have different absorption capability and penetration characteristics, meeting a variety of actual clinical needs such as ablation, coagulation, vaporization and etc. Harlas surgical laser is developed with a wide selection of output powers from 0.1W to 45W, providing high flexibility for surgery doctors to choose according to the practical surgery and therapy application requirements.
Providing A Complete Set Of Accessories
Harlas surgery laser equipment is specially developed with a full set of accessories which makes it available for multiple surgery and therapy treatment uses. Its accessories include safety goggles, fiber cutter, fibers, footswitch, surgical handpieces, fiber stripper, therapy handpieces. The full-range of accessories and our comprehensive services will bring you a convenient one-stop experience.
Stable Working Performance, Long Stability And Competitive Price
Harlas surgical laser is designed with enhanced internal hardware structure and optimized software programs that it can be applied in various surgery and therapy scenarios for a long time with optimal performance and reliability. We also provide excellent after-sales service, free-warranty service and custom service for our customers. While maintaining the Germany quality, we provide competitive price for wholesalers and distributors!
